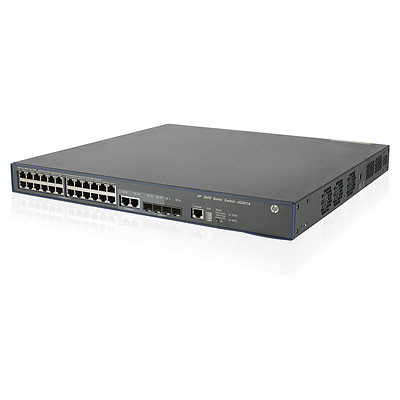

HP 3600-24-PoE+ v2 EI Switch JG301A
Model # JG301A Lifetime HP Warranty - same as new
This is not your typical 3rd party refurbished item, this has been recertified & processed by HP to pass all testing procedures – same as new and includes the same warranty at considerable savings.
The HP 3600 EI Switch Series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Layer 3 Fast Ethernet and PoE/PoE+ switches, with advanced features that can accommodate the most demanding applications. Secure, resilient connectivity and the latest traffic-prioritization technologies enhance converged networks. Designed for increased flexibility and scalability, HP 3600 EI series switches come with 24 or 48 10/100 ports, four active SFP-based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP slots.
Specifications
Form Factor Chassis 1U height
Product Description HP 3600-24-PoE+ v2 EI Switch
Heat Dissipation 143 BTU/hr (150.86 kJ/hr)
Operating Humidity Range 5 to 95% (noncondensing)
Non Operating Humidity Range 5 to 95% (noncondensing)
Input Frequency 50/60 Hz
Input Voltage 100-240 VAC; -52 to -55 VDC (depending on power supply chosen)
External IO Ports 24 RJ-45 autosensing 10/100 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+), Duplex: half or full; 4 SFP 1000 Mbps ports; 2 dual-personality 1000 Mbps ports(IEEE 802.3ab Type 1000BASE-T); 1 RJ-45 serial console port
Latency 100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs
Memory And Processor 256 MB SDRAM, packet buffer size: 2 MB, 128 MB flash
Management Features IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Mounting Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Power Consumption Description 795 W (maximum)
Product Differentiator HP 3600-24-PoE v2 EI Switch with 24 10/100Base-T PoE ports, 4 SFP GE ports 2 of which are 1000Tx combo ports
Routing Switching Capacity 12.8 Gbps
Routing Table Size 12000 entries
Safety Approvals And Req UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Operating Temperature Range (celsius) 0 to 50°C
Operating Temperature Range (fahrenheit) 32 to 122°F
Storage Temperature Range (celsius) -40 to 70°C
Storage Temperature Range (fahrenheit) -40 to 158°F
Throughput 9.5 million pps
Form Factor Chassis 1U height
Product Description HP 3600-24-PoE+ v2 EI Switch
Heat Dissipation 143 BTU/hr (150.86 kJ/hr)
Operating Humidity Range 5 to 95% (noncondensing)
Non Operating Humidity Range 5 to 95% (noncondensing)
Input Frequency 50/60 Hz
Input Voltage 100-240 VAC; -52 to -55 VDC (depending on power supply chosen)
External IO Ports 24 RJ-45 autosensing 10/100 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+), Duplex: half or full; 4 SFP 1000 Mbps ports; 2 dual-personality 1000 Mbps ports(IEEE 802.3ab Type 1000BASE-T); 1 RJ-45 serial console port
Latency 100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs
Memory And Processor 256 MB SDRAM, packet buffer size: 2 MB, 128 MB flash
Management Features IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Mounting Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Power Consumption Description 795 W (maximum)
Product Differentiator HP 3600-24-PoE v2 EI Switch with 24 10/100Base-T PoE ports, 4 SFP GE ports 2 of which are 1000Tx combo ports
Routing Switching Capacity 12.8 Gbps
Routing Table Size 12000 entries
Safety Approvals And Req UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Operating Temperature Range (celsius) 0 to 50°C
Operating Temperature Range (fahrenheit) 32 to 122°F
Storage Temperature Range (celsius) -40 to 70°C
Storage Temperature Range (fahrenheit) -40 to 158°F
Throughput 9.5 million pps
The HP Renew Program offers you a comprehensive portfolio of thoroughly remanufactured HP products that are a mirror image of new, at very competitive prices. HP warranty is assured as all HP Renew products undergo the same building and testing process as for new products. If you're looking for refurbished or reconditioned technology, consider fully remanufactured products from HP Renew, a better option since they perform as new and have the same warranty as New, the warranty will begin when the customer receives the product.
HP Renew Program includes any of the following
• Demonstration and trial equipment
• Lease and rental returns
• Discontinued products
• Excessive inventory from factory
• Customer returns Trade-in and trade-up programs
Rackfinity is an Authorized HP Business Partner, please contact us for additional HP Renew solutions that can be customized to fit your requirements.
