HPE LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class
Mfr# 659818-B21
This is not your typical 3rd party refurbished item, this has been recertified & processed by HP to pass the same testing procedures as new products and includes a direct HP Warranty (same as new) at considerable savings.

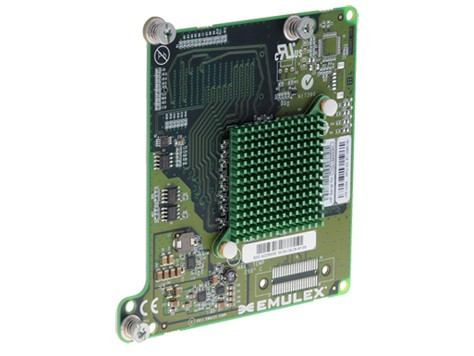

The HP LPe1205A is a PCI Express based 8Gb Fibre Channel Type A Mezzanine card compatible with HP ProLiant BladeSystem c-Class servers. It provides superior reliability, exceptional performance, enhanced security, server side NPIV, and scalable management for virtual server and enterprise-class applications. The dual-channel design is ideal for mission critical applications that rely on highly available connectivity. Using Emulex firmware and driver architecture, the HP LPe1205A is designed to be fully driver compatible with all Emulex HBAs. This architecture allows firmware to be upgraded without taking the server off-line or re-booting, and without the need to upgrade the driver. As with all Emulex LightPulse Fibre Channel HBAs, the HP LPe1205A is managed with Emulex OneCommand™ Manager (OCM). This provides a secure, centralized administration console to discover and manage Emulex Fibre Channel HBAs on local and remote hosts.
Main Features
Brand Name: HP
Data Transfer Rate: 8.50 Gbit/s
Fibre Channel Class Supported: Class 2
Class 3
Host Interface: PCI Express 2.0 x4
Product Type: Fibre Channel Host Bus Adapter
Total Number of Fibre Channel Ports: 2
General Information
Brand Name: HP
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: 659818-B21
Manufacturer Website Address:
Packaged Quantity: 1
Product Name: LPe1205A Dual-channel 8Gb Fibre Channel Mezzanine Host Bus Adapter
Product Type: Fibre Channel Host Bus Adapter
Media & Performance
Data Transfer Rate: 8.50 Gbit/s
Fiber Mode Supported: Multi-mode
Media Type Supported: Optical Fiber
Miscellaneous
Certifications & Standards:
UL recognized to 60950-1:2007
CUR recognized to CSA22.2, No. 60950-1-07
TUV certified to EN60950-1
FCC rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
Japan VCCI, Class A
Korea KCC, Class A
Environmental Certification: China RoHS
RoHS
WEEE
Environmentally Friendly: Yes
Physical Characteristics
Form Factor: Plug-in Card
Height: 3.5"
Width: 3.9"
Technical Information
Fiber Channel Port Type: N_Port
Fibre Channel Class Supported: Class 2
Class 3
Host Interface: PCI Express 2.0 x4
Total Number of Fibre Channel Ports: 2
Virtualization, uncompromising reliability, availability and serviceability
- The HP LPe1205A 8Gb Fibre Channel HBA for BladeSystem c-Class is a Type A Mezzanine card compatible with HP ProLiant Gen8 server blades
- Bandwidth, CPU efficiency, and responsiveness required for large virtual server deployments
- Enhanced storage management capabilities in a virtual server environment by using NPIV to assign multiple Fibre Channel addresses on the same physical link, giving each virtual machine a unique path to storage
- Advanced error-checking and robust data integrity capabilities of Emulex solutions
- Improved power management by monitoring the environment
HP Renew Program includes any of the following
• Demonstration and trial equipment
• Lease and rental returns
• Discontinued products
• Excessive inventory from factory
• Customer returns Trade-in and trade-up programs
Rackfinity is an Authorized HP Business Partner, please contact us for additional HP Renew solutions that can be customized to fit your requirements.
