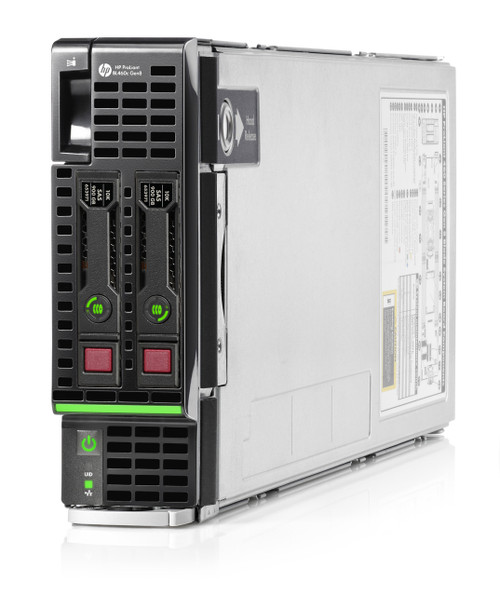

HP ProLiant BL460c G8 Blade Server - 1 x Intel Xeon E5-2609 v2 2.50 GHz - 2 Processor Support - 16 GB Standard - 6Gb/s SAS RAID Supported Controller - 10 Gigabit Ethernet - RAID Level: 0, 1 Server
Mfr # 724087R-B21 3-Year HP Warranty
Brand Name: HP
Form Factor: Blade
Number of Processors Installed: 1
Number of Processors Supported: 2
Operating System: No
Optical Drive Type: No
Processor Core: Quad-core (4 Core)
Processor Manufacturer: Intel
Processor Model: E5-2609 v2
Processor Speed: 2.50 GHz
Processor Type: Xeon
Product Family: ProLiant BL460c G8
Product Type: Server
RAID Supported: Yes
Standard Memory: 16 GB
Product Description HP ProLiant BL460c Gen8 - Xeon E5-2609V2 2.5 GHz - 16 GB - 0 GB
Type Server - blade
Server Scalability 2-way
Processor 1 x Intel Xeon E5-2609V2 / 2.5 GHz ( Quad-Core )
Cache Memory 10 MB L3 cache
Cache Per Processor 10 MB
RAM 16 GB (installed) / 256 GB (max) - DDR3 SDRAM - 1600 MHz - PC3-12800
Storage Controller SAS-2 ( SAS 6Gb/s ) - PCI Express x4 ( Smart Array P220i with 512MB FBWC )
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Graphics Controller Matrox G200
Networking GigE, 10 GigE
Dimensions (WxDxH) 2.2 in x 20.4 in x 7.1 in
Weight 10.5 lbs
Type Server
Recommended Use Small business, corporate business
Product Form Factor Blade
Server Scalability 2-way
Hot-Swap Bays Qty 2
Processor / Chipset
CPU Intel Xeon E5-2609V2 / 2.5 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 2
CPU Upgradability Upgradable
Cache Memory
Installed Size L3 cache - 10 MB
Cache Per Processor 10 MB
RAM
Installed Size 16 GB / 256 GB (max)
Technology DDR3 SDRAM
Memory Speed 1600 MHz
Memory Specification Compliance PC3-12800
Form Factor DIMM 240-pin
Features Registered, HP SmartMemory
Configuration Features 2 x 8 GB
RAM Supported PC3-14900 - 256 GB - registered ¦ PC3-14900 - 128 GB - unbuffered - Advanced ECC ¦ PC3-14900 - 512 GB - low voltage - Load-Reduced
Hard Drive
Type No HDD
Storage Controller
Type 1 x SAS-2 - integrated - PCI Express x4
Controller Interface Type SAS 6Gb/s
Storage Controller Name Smart Array P220i with 512MB FBWC
RAID Level RAID 0, RAID 1
Buffer Size 512 MB
Type Integrated
Graphics Processor Matrox G200
Networking
Type Plug-in card
Interface (Bus) Type PCI Express 2.0 x8
Ethernet Ports 2 x 10 Gigabit Ethernet
Ethernet Controller HP 534FLB
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol SNMP, IPMI 2.0, SMASH CLP
Remote Management Controller Integrated Lights-Out 4
Features Wake on LAN (WoL)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap
Expansion / Connectivity
Bays 2 (total) / 2 (free) x hot-swap 2.5" SFF
Slots 2 (total) / 1 (free) x CPU ¦ 16 (total) / 14 (free) x DIMM 240-pin ¦ 2 expansion slot ( x16 mode ) ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSDHC Card (internal)
Interfaces 1 x HP iLO ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x USB 2.0 ( 1 internal )
Miscellaneous
Features Administrator password, power-on password, USB port control
Compliant Standards ACPI 2.0, WEEE
Operating System / Software
OS Certified SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris, Citrix XenServer
Dimensions & Weight
Width 2.2 in
Depth 20.4 in
Height 7.1 in
Weight 10.5 lbs
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 90% (non-condensing)
HP Renew Program includes any of the following
• Demonstration and trial equipment
• Lease and rental returns
• Discontinued products
• Excessive inventory from factory
• Customer returns Trade-in and trade-up programs
Rackfinity is an Authorized HP Business Partner, please contact us for additional HP Renew solutions that can be customized to fit your requirements.
