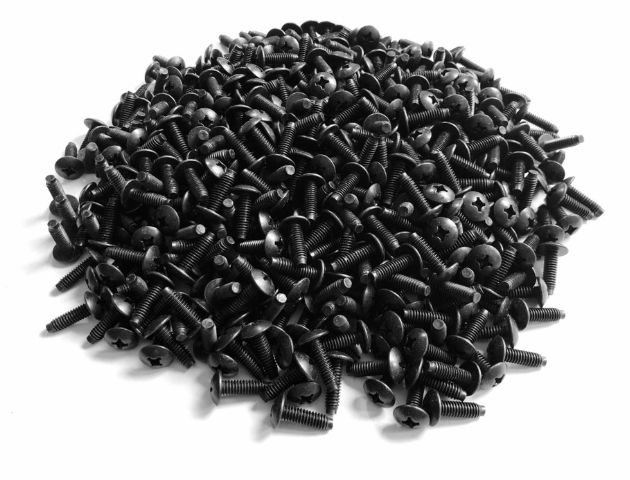

A Technical Rack Screw Handbook: When and How to Use 10-32, 12-24, and M6

If you were to ask someone to name IT equipment, they may say “computer” or “server rack,” as these are amongst the most important items in an IT setup. However, there are a few valuable accessories that play an essential role in server rack setups. For example, rack screws are quite important to the overall functioning and maintenance of networking equipment.

They may play a supporting role, but they are still crucial to the production. In this article, we will explain everything you need to know about rack screws, their importance, and their various sizes.

When Should I Use Rack Screws? How Are They Useful?

Rack screws should be used whenever you are working with server racks. Without them, you would not be able to securely attach or remove server rack components. In many ways, rack screws are the connecting pieces of server racks that help keep everything together.

Rack screws are useful because of their weight capacity. While they may appear small, these fasteners can support significant amounts of weight. This is perfect for heavier networking equipment.

In addition, they are fairly easy to install. Since there are different types of rack screw sizes, all you need to do is use a suitable screwhead.

These fasteners are useful because they allow for scalability. As businesses grow, so should their data storage and equipment. With rack screws, you can upscale your server rack as necessary.

Rack screws are also very affordable; you can purchase a bulk pack of rack screws for under $40.

Finally, it is important to note that rack screws are most useful when they are in a healthy condition. Over time, screws can rust and weaken. Before that happens, be sure to replace them, as this can prevent potential equipment damage. Repairing damaged server rack components costs more time and money than installing new rack screws.

What are the Different Types of Rack Screw Sizes?

By learning about different rack screw sizes, you can confirm which type is compatible with your server rack.

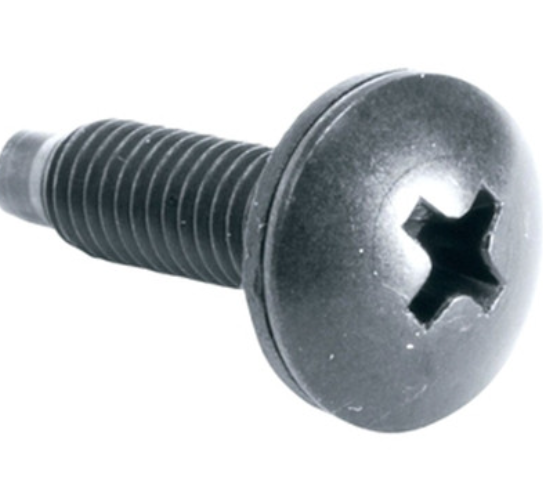

To start, there is the 10-32 rack screw, also known as the “original rack screw.” This is the most common variant and is utilized with most American server racks. The “10” refers to its size, with a diameter of 3/16”, or 4.8mm. “32” indicates the number of threads per inch.

The following type of rack screw is the 12-24. It is a bit larger, with a diameter of 7/32”, or 5.6mm. Interestingly, the 12-24 rack screw features fewer threads per inch despite being larger. Typically, this type of rack screw is best used for pre-threaded mounting racks.

Next, there is the M6 rack screw. This type of rack screw was created in Europe. With a diameter of 6mm, it is the largest fastener. While it is mostly used internationally, HP server racks use this variant of fastener.

Finally, the M5 rack screw is available, although it is not as popular as its counterparts. This has a diameter of 5mm.
