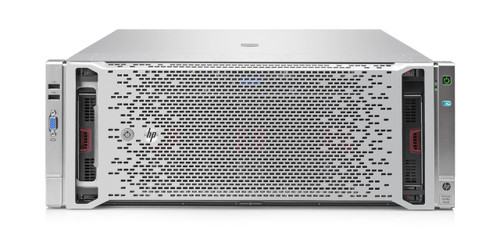

HP ProLiant 4U DL580 Gen8 Xeon E7-4850V2 2.3GHz Server
Mfr# 728546-001 with 3 Year onsite HP Warranty - Same Warranty as New
This is not your typical 3rd party refurbished item, this has been recertified & processed by HP to pass the same testing procedures as new products and includes a direct HP Warranty (same as new) at considerable savings.
The HP ProLiant DL580 Gen8 Server is an enterprise-grade four socket (4S) x86 server offering breakthrough performance, rock-solid reliability, and compelling consolidation and manageability efficiencies. It is ideal for mission-critical enterprise, business intelligence, and database applications. Featuring Intel® Xeon® E7-4800/8800 v2 processors, the DL580 Gen8 offers blazing fast results with enhanced processor performance, more memory slots (96 DIMMs), greater IO bandwidth (9 PCIe Gen3.0 slots), and increased storage performance (12 Gbps SAS). HP ProLiant DL580 Gen8 has security and data protection features for system resiliency that your business can depend on. With intelligent manageability through HP OneView, iLO 4, and user-inspired features, you get faster, lower cost infrastructure management.
Main Features
Product Description HP ProLiant DL580 Gen8 High Performance - Xeon E7-4850V2 2.3 GHz - 128 GB - 0 GB
Type Server
Form Factor Rack-mountable - 4U
Localization United States
Server Scalability 4-way
Processor 4 x Intel Xeon E7-4850V2 / 2.3 GHz ( 12-core )
Cache Memory 96 MB L3 cache
Cache Per Processor 24 MB
RAM 128 GB (installed) / 3 TB (max) - DDR3 SDRAM - 1600 MHz - PC3-14900
Storage Controller RAID ( SATA-600 / SAS 3.0 ) - PCI Express 2.0 x4 ( Smart Array P830i with 2GB FBWC )
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Graphics Controller Matrox G200
Networking 10 GigE
Power AC 230 V ( 50/60 Hz )
Power Redundancy Yes
Dimensions (WxDxH) 19 in x 27.6 in x 6.9 in
Weight 66.1 lbs
Manufacturer Warranty 3 years warranty - on-site
Product Description HP ProLiant DL580 Gen8 High Performance - Xeon E7-4850V2 2.3 GHz - 128 GB - 0 GB
Type Server
Form Factor Rack-mountable - 4U
Localization United States
Server Scalability 4-way
Processor 4 x Intel Xeon E7-4850V2 / 2.3 GHz ( 12-core )
Cache Memory 96 MB L3 cache
Cache Per Processor 24 MB
RAM 128 GB (installed) / 3 TB (max) - DDR3 SDRAM - 1600 MHz - PC3-14900
Storage Controller RAID ( SATA-600 / SAS 3.0 ) - PCI Express 2.0 x4 ( Smart Array P830i with 2GB FBWC )
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Graphics Controller Matrox G200
Networking 10 GigE
Power AC 230 V ( 50/60 Hz )
Power Redundancy Yes
Dimensions (WxDxH) 19 in x 27.6 in x 6.9 in
Weight 66.1 lbs
Manufacturer Warranty 3 years warranty - on-site
Additional Specifications
Brand Name: HP
Form Factor: Rack
Green Compliant: Yes
Maximum Memory: 3 TB
Number of Processors Installed: 4
Number of Processors Supported: 4
Operating System: No
Optical Drive Type: No
Processor Core: Dodeca-core (12 Core)
Processor Manufacturer: Intel
Processor Model: E7-4850 v2
Processor Speed: 2.30 GHz
Processor Type: Xeon
Product Family: ProLiant DL580 G8
Product Type: Server
Rack Height: 4U
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
RAID Supported: Yes
Standard Memory: 128 GB
Bays
Number of Internal 2.5" Bays: 10
Number of Total Expansion Bays: 10
Controllers
Controller Type: 12Gb/s SAS
Serial ATA/600
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Graphics Memory Capacity: Up to 256 MB
Maximum Memory: 3 TB
General Information
Brand Name: HP
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: 728546-001
Manufacturer Website Address: http://www.hpe.com
Package Contents:
• ProLiant DL580 Gen8 E7-4850v2 4P 128GB-R P830i/2G 534FLR-SFP+ 1500W RPS Svr
• Rail Kit
Product Line: ProLiant
Product Name: ProLiant DL580 Gen8 E7-4850v2 4P 128GB-R P830i/2G 534FLR-SFP+ 1500W RPS Svr
Product Series: DL580 G8
Product Type: Server
I/O Controller
Controller Type: 12Gb/s SAS
Serial ATA/600
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
RAID Supported: Yes
I/O Expansions
Number of Internal 2.5" Bays: 10
Number of PCI Express x16 Slots: 5
Number of PCI Express x8 Slots: 4
Number of Total Expansion Bays: 10
Number of Total Expansion Slots: 9
Interfaces/Ports
Ethernet Technology: 10 Gigabit Ethernet
Gigabit Ethernet
Network (RJ-45): Yes
Number of USB 2.0 Ports: 8
Remote Management: Yes
Total Number of USB Ports: 8
VGA: Yes
Media & Performance
Ethernet Technology: 10 Gigabit Ethernet
Gigabit Ethernet
Memory
Maximum Memory: 3 TB
Memory Card Reader: Yes
Memory Card Supported: microSD
Memory Standard: DDR3-1866/PC3-14900
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 96
Standard Memory: 128 GB
Certifications & Standards:
• ACPI 2.0. Compliant
• PCIE 2.0 Compliant
• PXE Support
• WOL Support
• Physical Address Extension (PAE) Support
• Microsoft Logo certifications
• FCC Rating Class A
• CISPR 22
• EN55022
• EN55024
• FCC CFR 47, Pt 15
• ICES-003
• CNS13438
• GB9254
• K22
• K24
• EN 61000-3-2
• EN 61000-3-3
• EN 60950-1
• IEC 60950-1
Form Factor: Rack
Green Compliance Certificate/Authority: EU WEEE
REACH
WEEE
Green Compliant: Yes
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Gigabit Ethernet
Remote Management: Yes
Physical Characteristics
Depth: 27.6"
Form Factor: Rack
Height: 6.9"
Rack Height: 4U
Weight (Approximate): 100 lb
Width: 19"
Power Description
Input Voltage: 110 V AC
220 V AC
Maximum Power Supply Wattage: 1.50 kW
Number of Power Supplies Installed: 4
Processor & Chipset
64-bit Processing: Yes
Cache: 24 MB
Chipset Manufacturer: Intel
Chipset Model: C602J
Hyper-Threading: Yes
Maximum Turbo Speed: 2.80 GHz
Number of Processors Installed: 4
Number of Processors Supported: 4
Processor Core: Dodeca-core (12 Core)
Processor Manufacturer: Intel
Processor Model: E7-4850 v2
Processor Speed: 2.30 GHz
Processor Type: Xeon
QuickPath Interconnect: 7.20 GT/s
Compatibility:
• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware
Form Factor: Rack
Width: 19"
Software
Operating System: No
Storage
Memory Card Supported: microSD
Number of Hard Drives: No
Optical Drive Type: No
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
Technical Information
64-bit Processing: Yes
Controller Type: 12Gb/s SAS
Serial ATA/600
Ethernet Technology: 10 Gigabit Ethernet
Gigabit Ethernet
Memory Card Reader: Yes
Memory Card Supported: microSD
Memory Standard: DDR3-1866/PC3-14900
Memory Technology: DDR3 SDRAM
Operating System: No
Optical Drive Type: No
Processor Core: Dodeca-core (12 Core)
Processor Manufacturer: Intel
QuickPath Interconnect: 7.20 GT/s
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
RAID Supported: Yes
Video
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Warranty
Limited Warranty: 3 Year HP Warranty
Brand Name: HP
Form Factor: Rack
Green Compliant: Yes
Maximum Memory: 3 TB
Number of Processors Installed: 4
Number of Processors Supported: 4
Operating System: No
Optical Drive Type: No
Processor Core: Dodeca-core (12 Core)
Processor Manufacturer: Intel
Processor Model: E7-4850 v2
Processor Speed: 2.30 GHz
Processor Type: Xeon
Product Family: ProLiant DL580 G8
Product Type: Server
Rack Height: 4U
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
RAID Supported: Yes
Standard Memory: 128 GB
Bays
Number of Internal 2.5" Bays: 10
Number of Total Expansion Bays: 10
Controllers
Controller Type: 12Gb/s SAS
Serial ATA/600
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Graphics Memory Capacity: Up to 256 MB
Maximum Memory: 3 TB
General Information
Brand Name: HP
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: 728546-001
Manufacturer Website Address: http://www.hpe.com
Package Contents:
• ProLiant DL580 Gen8 E7-4850v2 4P 128GB-R P830i/2G 534FLR-SFP+ 1500W RPS Svr
• Rail Kit
Product Line: ProLiant
Product Name: ProLiant DL580 Gen8 E7-4850v2 4P 128GB-R P830i/2G 534FLR-SFP+ 1500W RPS Svr
Product Series: DL580 G8
Product Type: Server
I/O Controller
Controller Type: 12Gb/s SAS
Serial ATA/600
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
RAID Supported: Yes
I/O Expansions
Number of Internal 2.5" Bays: 10
Number of PCI Express x16 Slots: 5
Number of PCI Express x8 Slots: 4
Number of Total Expansion Bays: 10
Number of Total Expansion Slots: 9
Interfaces/Ports
Ethernet Technology: 10 Gigabit Ethernet
Gigabit Ethernet
Network (RJ-45): Yes
Number of USB 2.0 Ports: 8
Remote Management: Yes
Total Number of USB Ports: 8
VGA: Yes
Media & Performance
Ethernet Technology: 10 Gigabit Ethernet
Gigabit Ethernet
Memory
Maximum Memory: 3 TB
Memory Card Reader: Yes
Memory Card Supported: microSD
Memory Standard: DDR3-1866/PC3-14900
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 96
Standard Memory: 128 GB
Certifications & Standards:
• ACPI 2.0. Compliant
• PCIE 2.0 Compliant
• PXE Support
• WOL Support
• Physical Address Extension (PAE) Support
• Microsoft Logo certifications
• FCC Rating Class A
• CISPR 22
• EN55022
• EN55024
• FCC CFR 47, Pt 15
• ICES-003
• CNS13438
• GB9254
• K22
• K24
• EN 61000-3-2
• EN 61000-3-3
• EN 60950-1
• IEC 60950-1
Form Factor: Rack
Green Compliance Certificate/Authority: EU WEEE
REACH
WEEE
Green Compliant: Yes
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Gigabit Ethernet
Remote Management: Yes
Physical Characteristics
Depth: 27.6"
Form Factor: Rack
Height: 6.9"
Rack Height: 4U
Weight (Approximate): 100 lb
Width: 19"
Power Description
Input Voltage: 110 V AC
220 V AC
Maximum Power Supply Wattage: 1.50 kW
Number of Power Supplies Installed: 4
Processor & Chipset
64-bit Processing: Yes
Cache: 24 MB
Chipset Manufacturer: Intel
Chipset Model: C602J
Hyper-Threading: Yes
Maximum Turbo Speed: 2.80 GHz
Number of Processors Installed: 4
Number of Processors Supported: 4
Processor Core: Dodeca-core (12 Core)
Processor Manufacturer: Intel
Processor Model: E7-4850 v2
Processor Speed: 2.30 GHz
Processor Type: Xeon
QuickPath Interconnect: 7.20 GT/s
Compatibility:
• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware
Form Factor: Rack
Width: 19"
Software
Operating System: No
Storage
Memory Card Supported: microSD
Number of Hard Drives: No
Optical Drive Type: No
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
Technical Information
64-bit Processing: Yes
Controller Type: 12Gb/s SAS
Serial ATA/600
Ethernet Technology: 10 Gigabit Ethernet
Gigabit Ethernet
Memory Card Reader: Yes
Memory Card Supported: microSD
Memory Standard: DDR3-1866/PC3-14900
Memory Technology: DDR3 SDRAM
Operating System: No
Optical Drive Type: No
Processor Core: Dodeca-core (12 Core)
Processor Manufacturer: Intel
QuickPath Interconnect: 7.20 GT/s
RAID Levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
RAID Supported: Yes
Video
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200
Warranty
Limited Warranty: 3 Year HP Warranty
The HP Renew Program offers you a comprehensive portfolio of thoroughly remanufactured HP products that are a mirror image of new, at very competitive prices. HP warranty is assured as all HP Renew products undergo the same building and testing process as for new products. If you're looking for refurbished or reconditioned technology, consider fully remanufactured products from HP Renew, a better option since they perform as new and have the same warranty as New, the warranty will begin when the customer receives the product.
HP Renew Program includes any of the following
• Demonstration and trial equipment
• Lease and rental returns
• Discontinued products
• Excessive inventory from factory
• Customer returns Trade-in and trade-up programs
Rackfinity is an Authorized HP Business Partner, please contact us for additional HP Renew solutions that can be customized to fit your requirements.
3-Year HP On-site Warranty
