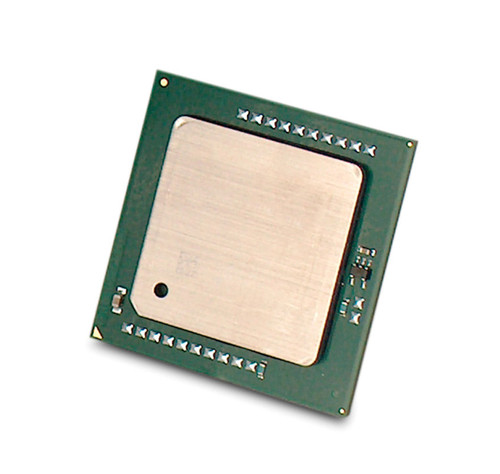

HP Intel Xeon E5-2698 v3 Hexadeca-core (16 Core) 2.30 GHz Processor Upgrade - Socket LGA 2011-v3 - 4 MB - 40 MB Cache - 9.60 GT/s QPI - 5 GT/s DMI - 64-bit Processing - 3.60 GHz Overclocking Speed - 22 nm - 135 W - 190.2°F (87.9°C)
Mfr # 727001R-B21 - HP Server Warranty
This is not your typical 3rd party refurbished item, this has been recertified & processed by HP to pass the same testing procedures as new products and includes a direct HP Warranty (same as new) at considerable savings.
Servers and storage solutions based on Intel® Xeon® processors deliver an unmatched combination of performance and built-in capabilities to support virtualized data centers and next-generation private clouds that are flexible, efficient, cost-effective, and built to scale.
Main Features
Brand Name: HP
Clock Speed: 2.30 GHz
L3 Cache: 40 MB
Processor Core: Hexadeca-core (16 Core)
Processor Manufacturer: Intel
Processor Socket: Socket LGA 2011-v3
Product Family: Xeon E5-2600 v3
Product Type: Processor Upgrade
Thermal Design Power: 135 W
Environmental Conditions
Thermal Specification: 190.2°F (87.9°C)
Brand Name: HP
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: 727001-B21
Manufacturer Website Address:
Product Line: Xeon
Product Model: E5-2698 v3
Product Name: Xeon Hexadeca-core E5-2698 v3 2.3GHz Server Processor Upgrade
Product Series: E5-2600 v3
Product Type: Processor Upgrade
Miscellaneous
Compatibility: HP BL460c Gen9
Physical Characteristics
Depth: 2"
Width: 2.1"
Power Description
Thermal Design Power: 135 W
Processor & Chipset
64-bit Processing: Yes
Direct Media Interface: 5 GT/s
L2 Cache: 4 MB
Processor Core: Hexadeca-core (16 Core)
Processor Manufacturer: Intel
Processor Socket: Socket LGA 2011-v3
QuickPath Interconnect: 9.60 GT/s
Product Information
Compatibility: HP BL460c Gen9
Width: 2.1"
Additional Specifications
Essentials
Launch Date: Q3'14
Processor Number: E5-2698V3
# of Cores: 16
# of Threads: 32
Clock Speed: 2.3 GHz
Max Turbo Frequency: 3.6 GHz
Intel® Smart Cache: 40 MB
Intel® QPI Speed: 9.6 GT/s
# of QPI Links: 2
Instruction Set: 64-bit
Instruction Set Extensions: Intel® AVX
Embedded Options Available: No
Lithography: 22 nm
Scalability: 2S
Max TDP: 135 W
VID Voltage Range: 0.65V–1.30V
Memory Specifications
Max Memory Size (dependent on memory type): 768 GB
Memory Types: DDR4-1600/1866/2133
# of Memory Channels: 4
Max Memory Bandwidth: 68 GB/s
Physical Address Extensions: 46-bit
ECC Memory Supported ‡: Yes
Expansion Options
PCI Express Revision: 3.0
PCI Express Configurations ‡: x4, x8, x16
Max # of PCI Express Lanes: 40
Package Specifications
Max CPU Configuration: 2
TCASE: 87.9°C
Package Size: 52.5mm x 51mm
Sockets Supported: FCLGA2011-3
Low Halogen Options Available: See MDDS
Advanced Technologies
Intel® Turbo Boost Technology ‡: 2.0
Intel® vPro Technology ‡: Yes
Intel® Hyper-Threading Technology ‡: Yes
Intel® Virtualization Technology (VT-x) ‡: Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes
Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
Intel® TSX-NI: No
Intel® 64 ‡: Yes
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Intel® Demand Based Switching: Yes
Thermal Monitoring Technologies: Yes
Intel® Flex Memory Access: No
Intel® Identity Protection Technology ‡: No
Intel® Data Protection Technology
AES New Instructions: Yes
Secure Key: Yes
Intel® Platform Protection Technology
OS Guard: Yes
Trusted Execution Technology ‡: Yes
Execute Disable Bit ‡: Yes
