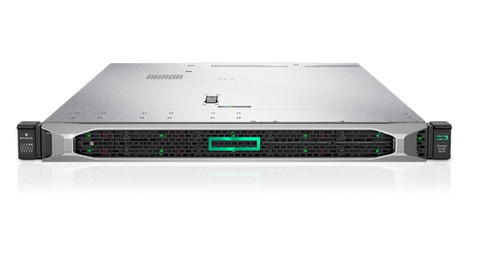

HPE P03629-B21 Proliant Dl360 Gen10 - 1x 2nd Gen Intel Xeon 6-core Bronze 3204 / 1.9 Ghz, 16(1x16)gb Ddr4 Sdram, Smart Array 14-port S100i, 1gb Eth 4p 331i Adapter, 8sff, 1x 500w Rps 1u Rack Server
Mfr # P03629-B21
Main Features
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P03629-B21
Manufacturer Website Address: WWW.HPE.COM
Product Name: Proliant Dl360 Gen10 - 1u Rack Mountable Server
Dimensions & Weight
Width: 17.1 In
Depth: 27.8 In
Height: 1.7 In
Weight: 28.75 Lbs
Expansion / Connectivity
Bays :
1 (total) / 1 (free) X External
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
24 (total) / 23 (free) X Dimm 288-pin
2 (total) / 1 (free) X Cpu
1 (total) / 1 (free) X Flexiblelom (low-profile)
1 (total) / 1 (free) X Pcie 3.0 X16 - Full-height
1 (total) / 1 (free) X Pcie 3.0 X8 (low-profile)
1 (total) / 1 (free) X Microsd Card (internal)
Interfaces :
14 X Sata-600
1 X Hp Ilo - Rj-45 (1 Rear)
1 X Vga (1 Rear)
4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear)
1 X Hp Ilo - Type A (1 In Front)
2 X Usb 3.0 (2 Rear)
1 X Poweredusb 3.0 (1 In Front)
2 X Usb 3.0 (1 Front, 1 Internal)
Graphics Controller
Video Memory: 16 Mb
Video Interfaces: Vga
Included Accessories
• HPE Easy Install Rails
• Cpu Standard Heatsink
• 5 X Standard Hot Plug Fans
Cables Included: Power Cable
Compliant Standard
• Aes
• Weee
• Tls V1.2
• Ashrae Class A4
• Ashrae Class A3
• Acpi 6.1
Memory
Installed Size : 16 Gb / 3 Tb (max)
Technology: Ddr4 Sdram
Effective Memory Speed: 2133 Mhz
Rated Memory Speed: 2666 Mhz
Memory Specification Compliance: Pc4-20800
Form Factor: Dimm 288-pin
Slots: 24 (total) / 23 (empty)
Features: Registered, Dual Rank
Configuration Features: 1 X 8 Gb
Ram Supported: Pc4-20800 3.072 Tb Load-reduced Pc4-20800 768 Gb Registered Pc4-20800 192 Gb Non-volatile
Network & Communication
Ethernet Ports: 4 X Gigabit Ethernet
Data Link Protocol:
• Ethernet
• Fast Ethernet
• Gigabit Ethernet
Remote Management Protocol
• Snmp 3
• Ipmi 2.0
• Smash Clp
Remote Management Controller: Integrated Lights-out 5
Features:
• Wake On Lan (wol)
• Pxe Support
Power Description
Device Type: Power Supply - Hot-plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (with Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Nominal Voltage: Ac 120/230 V (50/60 Hz)
Power Provided: 500 Watt
80 Plus Certification: 80 Plus Platinum
Processor & Chipset
Cpu: 2nd Gen Intel Xeon Bronze 3204 / 1.9 Ghz
Number Of Cores: 6-core
Cpu Qty: 1
Max Cpu Qty: 2
Cpu Upgradability: Upgradable
Cpu Socket: Fclga3647 Socket
Chipset Type: Intel C621
Cache Memory
Installed Size: L3 Cache - 11 Mb
Cache Per Processor: 11 Mb
Storage Controllers
Type: 1 X Sata
Controller Interface Type: Sata 6gb/s
Storage Controller Name: HPE Smart Array S100i Sr Software
Channel Qty: 14
