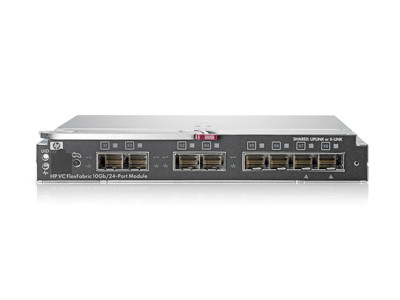

HPE Virtual Connect FlexFabric 10Gb/24-port Module for c-Cla

$5,393.25
$18,499.00
(You save $13,105.75 )

SKU:
571956R-B21
UPC:
0884962102558
Condition:
Refurbished
Mfr #:
571956-B21
Weight:
5.00 LBS

Questions? Call us at 1-800-944-0338

HP BLc Virtual Connect FlexFabric Expansion Module - For Optical Network, Data Networking - 8 x SFP+ 8 x Expansion Slots

Mfr # 571956R-B21 1-Year HP Warrranty

This is not your typical 3rd party refurbished item, this has been recertified & processed by HP to pass the same testing procedures as new products and includes a direct HP Warranty (same as new) at considerable savings.

Please contact sales@rackfinity.com for a customized quote today, discounts available.

HP Virtual Connect FlexFabric 10Gb/24-port Modules are the simplest, most converged and flexible way to connect virtualized server blades to any data or storage network. VC FlexFabric modules eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to LANs and SANs. Using Flex-10 technology with Fibre Channel over Ethernet and Accelerated iSCSI, these modules converge traffic over high speed 10 Gb connections to servers with HP FlexFabric Adapters. Each module provides four adjustable connections (three data and one storage or all data) to each 10 Gb server port. Avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses. Also, Virtual Connect wire-once connection management is built-in, enabling server adds, moves, and replacement in minutes instead of days.

Main Features
Brand Name:  HP
Product Type:  Expansion Module

Application/Usage:  Data Networking
Optical Network

General Information
Brand Name:  HP
Manufacturer:  Hewlett Packard Enterprise
Manufacturer Part Number:  571956-B21
Manufacturer Website Address:  http://www.hpe.com
Packaged Quantity:  1
Product Name:  BLc Virtual Connect FlexFabric Expansion Module
Product Type:  Expansion Module

I/O Expansions
Expansion Slot Type:  SFP+
Number of Total Expansion Slots:  8

Miscellaneous
Application/Usage:  Data Networking
 Optical Network
Compatibility:
HP c-Class BladeSystem

Physical Characteristics
Application/Usage:  Data Networking
Optical Network

Product Information
Application/Usage:  Data Networking
Optical Network
Compatibility:
HP c-Class BladeSystem

Packaged Quantity:  1

Technical Specifications

Availability
Availability features Link Aggregation Protocol; Automatic loop prevention; Mirrored profile database; Multi-path heartbeat between redundant modules

Connectivity
Media type technology Optional HP 10Gb SFP+ SR, LR, and LRM modules and 10Gb SFP+ Copper cables in 0.5m, 1m, 3m, 5m, and 7m lengths

Networking
Management features Embedded Virtual Connect Manager for provisioning, connection management and network troubleshooting up to 4 enclosures from one console; Simple and intuitive Graphical User Interface (GUI) and Setup Wizards; Command Line Interface supporting all functions plus network troubleshooting; server port mirroring on any uplink; embedded SNMP v1, v2

Performance
Port speed 10 Gb

Storage
Blades per enclosure, maximum 16

System
Feature Virtual Connect FlexFabric 10Gb/24-port Module for c-Class BladeSystem
Feature 8 buffer credits per port, ASIC embedded memory
Feature Ports
Feature Performance
Feature 16 x 10Gb downlinks through the midplane; 2 x 10Gb cross connect links; 4 x 10Gb SR, LR fiber and copper uplinks SFP+; 4 x 10Gb SR, LRM and LR fiber and copper uplinks SFP+; 1 internal interface to c-Class Onboard Administrator Module
Feature Indicators
Feature Buffer credits
Feature 16
BladeSystem supported HP ProLiant; Integrity Servers
Feature Latency
Feature Recessed Momentary Reset Switch; Momentary Next/Step Switch; Backlit port number, configuration and status indicator LED, one perbulkhead port, blue/amber/green; Module status indicator, amber/green; Module locator (UID), blue; Link indicator, one per SFP+-port, green/amber/orange; Active multiplexed port indicator, green
Feature 12V @ 9.17A (110 W)
Protocol supported Ethernet; Fast Ethernet; Gigabit Ethernet; SNMP 1; SNMP 2; HTTP; HTTPS; Fibre Channel; Fibre Channel over Ethernet; Data Center Bridging
Feature Product differentiator
Feature Power specification
Feature Line Rate, full-duplex 240Gbps bridging fabric; Non-blocking architecture; Maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames)

Compliance info
Standards
ENERGY STAR® qualified No

Environmental info
ECO quick links bullet 02 URL http://h71028.www7.hp.com/enterprise/us/en/solutions/hp-carbon-footprint-calculator.html?jumpid=re_r138_eco_home_carbon_footprint_learn_more
ECO quick links bullet 01 URL http://www.hp.com/hpinfo/globalcitizenship/environment/recycling/unwanted-hardware.html
ECO quick links bullet 01 URL statement Recycling and Reuse Options
ECO quick links bullet 02 URL statement Carbon Footprint Calculator
ECO quick links bullet 03 URL statement HP & the Environment
ECO quick links bullet 03 URL http://hp.com/environment

Dimensions
Minimum dimensions (W x D x H)  27 x 35.26 x 12.07 cm (shipping)
Weights
Weight  2.0 kg (shipping)

Warranty
1 year Parts, 1 year Labor, 1 year on-site support HP Warranty

The HP Renew Program offers you a comprehensive portfolio of thoroughly remanufactured HP products that are a mirror image of new, at very competitive prices. HP warranty is assured as all HP Renew products undergo the same building and testing process as for new products. If you're looking for refurbished or reconditioned technology, consider fully remanufactured products from HP Renew, a better option since they perform as new and have the same warranty as New, the warranty will begin when the customer receives the product.

HP Renew Program includes any of the following
 •  Demonstration and trial equipment
 •  Lease and rental returns
 •  Discontinued products
 •  Excessive inventory from factory
 •  Customer returns Trade-in and trade-up programs

 Rackfinity is an Authorized HP Business Partner, please contact us for additional HP Renew solutions that can be customized to fit your requirements.
