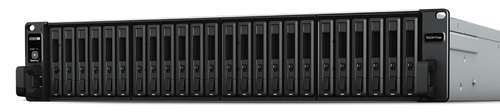

Synology RX2417sas Drive Enclosure - SAS Host Interface Rack-mountable - 24 x HDD Supported - 24 x SSD Supported - 24 x 2.5" Bay
Mfr # RX2417sas
24-bay 2.5" SAS/SATA expansion
Easily add 24 additional drive bays to Synology FlashStation or RackStation1. Supporting 2.5" SAS/SATA drives, the RX2417sas is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Maximum reliability design
Dual power supplies ensure continuous service uptime. Easily replace defective drives with the hot swappable drive trays. Experience fast and secure rack cabinet installation with the optional sliding rail kit RKS1317.
Main Features
Product Type: Drive Enclosure
Manufacturer Part Number: RX2417SAS
Manufacturer Website Address: http://www.synology.com
Packaged Quantity: 1
Manufacturer: Synology, Inc
Product Model: RX2417sas
Product Name: 24-bay 2.5" SAS/SATA Expansion
Brand Name: Synology
Applied Models
Supports creating volumes across different units
• FS series:FS6400, FS3400, FS3017, FS2017
• SA series:SA3600, SA3400
• 17 series:RS18017xs+
Storage
Drive Bays: 24
Compatible Drive Type* (See all supported drives)
• 2.5" SAS HDD
• 2.5" SAS SSD
• 2.5" SATA SSD
Maximum Internal Raw Capacity: 184.32 TB (7.68 TB drive x 24) (Capacity may vary by RAID types)
Hot Swappable Drive: Yes
RAID Management through Synology DSM: Yes
External Ports
SAS IN-port: 1
SAS OUT-port: 1
Power
Power Supply Unit / Adapter: 500 W
AC Input Power Voltage: 100 V to 240 V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption*
201.6 W (Access)
117.2 W (HDD Hibernation)
British Thermal Unit 687.89 BTU/hr (Access)
399.9 BTU/hr (HDD Hibernation)
Redundant Power Supply (for RP model): Yes
Temperature
Operating Temperature: 5°C to 35°C (40°F to 95°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity: 5% to 95% RH
Others
System Fan: 60 mm x 60 mm x 4 pcs
Easy Replacement System Fan: Yes
Noise Level*: 60.8 dB(A)
Certification
• FCC
• CE
• BSMI
• EAC
• RCM
Environment & Packaging
Environment
RoHS Compliant
Packaging Content
• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 2
• Expansion Cable: MiniSAS-HD X 1
• Quick Installation Guide X 1
Warranty
5 Year Warranty
