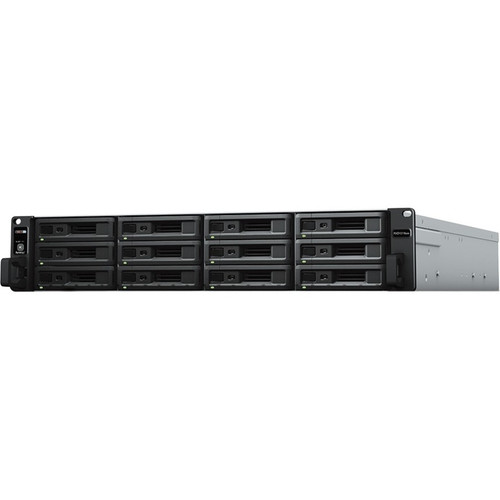

Synology RXD1219SAS Drive Enclosure - Mini-SAS HD Host Interface - 2U Rack-mountable - Hot Swappable Bays - 12 x HDD Supported - 12 x SSD Supported - 12 x 2.5"/3.5" Bay
Mfr # RXD1219sas
On-the-fly SAS expansion up to 12 additional bays
RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers1. You can add up to 12 additional 2.5" / 3.5" SAS drive bays on the fly when connected directly with a mini-SAS HD cable.
Designed for maximum reliability
The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.
High-performance data transmission
The mini-SAS HD provides high bandwidth connectivity to achieve maximum throughput during data transfer between your Synology server and RXD1219sas. It allows the drives in the connected RXD1219sas to operate as if they are the internal drives of the Synology server with no data latency.
Main Features
Product Type: Drive Enclosure
Manufacturer Website Address: http://www.synology.com
Packaged Quantity: 1
Manufacturer: Synology, Inc
Product Model: RXD1219SAS
Product Name: Expansion Unit RXD1219sas
Brand Name: Synology
Applied Models
Supports creating volumes across different units: SA3200D
Supports creating volumes on a single unit only: UC3200
Storage
Drive Bays: 12
Compatible Drive Type* (See all supported drives)
• 3.5" SAS HDD
• 2.5" SAS HDD
• 2.5" SAS SSD
Maximum Internal Raw Capacity: 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive: Yes
External Ports
SAS IN-port: 2
SAS OUT-port: 2
Power
Power Supply Unit / Adapter: 500 W
AC Input Power Voltage: 100 V to 240 V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption*: 299.79 W (Access)
British Thermal Unit: 1022.93 BTU/hr (Access)
Redundant Power Supply (for RP model): Yes
Temperature
Operating Temperature: 0°C to 35°C (32°F to 95°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity: 5% to 95% RH
Others
System Fan: 60 mm x 60 mm x 4 pcs
Easy Replacement System Fan: Yes
Noise Level*: 60.9 dB(A)
Certification
• FCC
• CE
• BSMI
• EAC
• VCCI
• RCM
• KC
Environment & Packaging
Environment
RoHS Compliant
Packaging Content
• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 2
• Expansion Cable: Mini-SAS HD X 2
• Quick Installation Guide X 1
Warranty
5 Year Warranty
